PB30ANH
Easy field installation with outstanding
performance& high durability

PB30ANH is

based on the PLC (power line communication) technologies, the PB30ANH provides outstanding monitoring system

without any obstacles such as lack of power, communication failures, distance restriction and etc..

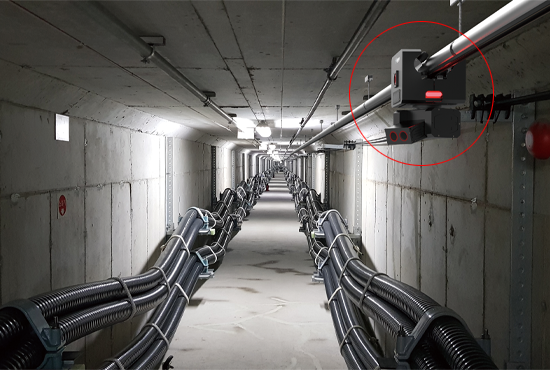

PB30ANH optimized to install places under communications disruption such as underground utility tunnels,

underground electricity room of the large factories and more.

Full surveillance available
in every positions and viewpoint

Extended surveillance capabilities with a
thermal imaging camera & additional sensors

Stable control & massive data transmission
based on TCP/IP power line communication

A BETOBOT surveils maximum 500m area

Preset functions such as Infinite surveillance
on major surveillance areas provide autonomous
surveillance beyond human patrols

Driving capabilities on curved & slope ways
enable to move freely on any obstacles

PB30ANH

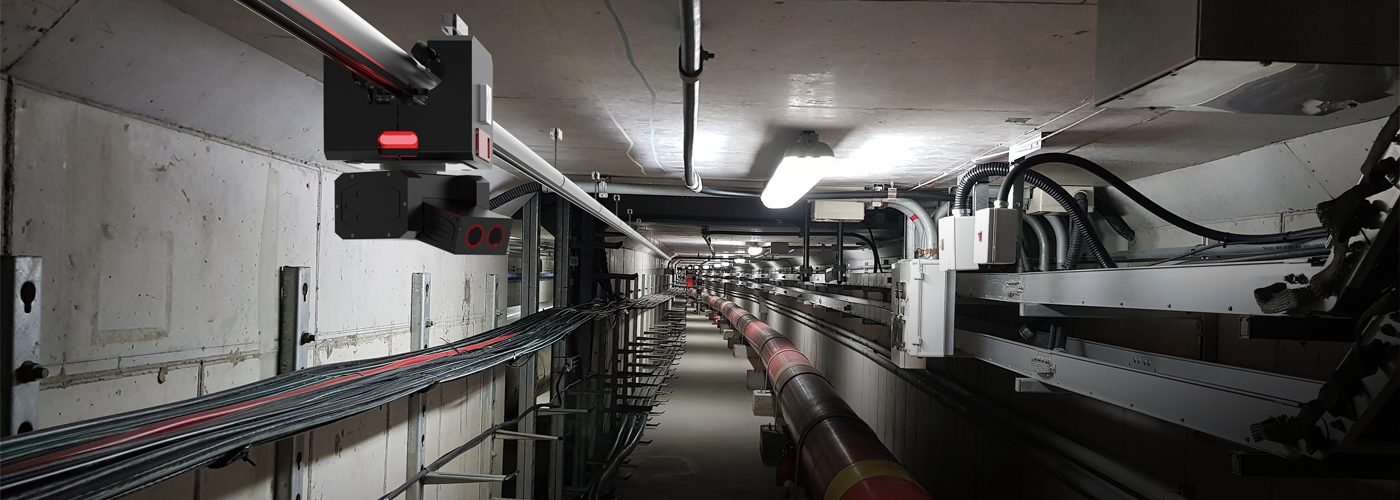

PB30ANH optimized to install places under communications disruption such as underground utility tunnels, underground electricity room of the large factories and more.

· Standardized module for easy installation with outstanding performance & high durability
· BETOBOT has been acknowledged durability & field applicability by years of various field experiences

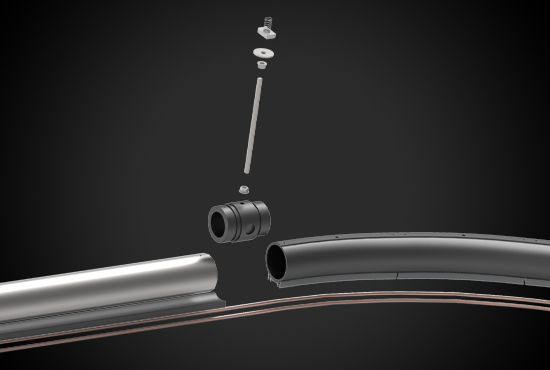

PipeRail system

Standardized modules of the PipeRail make it easier to design & install slope & curved rail structures along with needed surveillance areas.

- Galvanized steel pipe & copper tube
- Intelligent control panel
- Including parts
   · Power & communication line & line guide
   · Pipe connectors
   · Fixation parts / Absorber block
   · Power cable

PB30ANH specification

Travel speed	0.1 ~ 1.0 m/s
Position repeatability	±5.0 mm (Straight section)
The radius of curvature	R ≥ 1000 mm
Slope	15°(Max)
Communication	TCP/IP based (Power line communication)
Power Supply	Power line contacting type (DC 28V, Wheel & Slip ring)
Power consumption	MAX 360W
Weight (Main body)	< 20 kg
Size	340(W) x 305(D) x 270(H)
Additional mounting load	~ 20kg

Hardware option
